Scanflo Professional

In keeping with it tradition since 1991, SunRise continues to lead the microfilm industry with new technology. SunRise Imaging 3-in-1 scanners, Apollo and Apollo HS, include ScanFlo Premier our powerful new application, and ScanFlo Professional our classic scan application that SunRise users are familiar with. Both take advantage of the new features in scanner hardware and Windows operating system.

Apollo runs on Microsoft® Windows® 10 Professional operating system. The new Premier graphic display interface is easier to use than ever before. The microfilm screen views are larger taking advantage of the 1920 x 1080 resolution available on today's big 24" screens.

The SunRise 3-in-1 scanning system consists of a Base Unit which includes: computer, software, scanner controls, camera and light source, and a Rollfilm, Fiche or Autofeeding Aperture card Module to transport the film for the type of microfilm to be scanned. Modular design lowers cost, and preserves your investment over time. We offer upgrades from older base models to Apollo.

The SunRise 3-in-1 scanning system consists of a Base Unit which includes, computer, software, scanner controls, camera and light source. A rollfilm, fiche or aperture card module completes the system for any type of microfilm to be scanned.

Apollo Features

Apollo Features

  • 3-in-1 modular design - uniform procedures all film types
  • Rollfilm, Fiche and Aperture card microfilm types
  • Highly efficient, power saving, low noise
  • Optical Zoom supporting 2,000 to 20,000 DPI

Software Features

Software Features

Windows 10 Professional Operating system Applications:

  • ScanFlo Premier
  • Virtual Scan Post Processing Workstation software
  • ScanFlo Professional (Classic)
  • ReelScan \ RowScan Strip scan
  • Remote access diagnostics

Computing System

Computing System

  • Intel i7 Processor
  • 4 Gbyte system memory
  • Internal M.2 SSD 1TB drive,
  • External SATA drives, Flash drives

Input / Output

Input / Output

  • USB 3.1 / 3.0 / 2.0: 4-front, 4-rear
  • Dual displays: Analog/DVI/HDMI
  • Mouse and keyboard
  • 10 Gigabit Ethernet LAN

Imaging

Imaging

  • Linear CCD 8160 pixel array
  • Ultra efficient LED Lamp Source
  • 48Mpixels/sec 8/12 bit per pixel mode
  • Nikon 60mm f/2.8 lens
Scanflo Professional

In keeping with it tradition since 1991, SunRise continues to lead the microfilm industry with new technology. SunRise Imaging 3-in-1 scanners, Apollo and Apollo HS, include ScanFlo Premier our powerful new application, and ScanFlo Professional our classic scan application that SunRise users are familiar with. Both take advantage of the new features in scanner hardware and Windows operating system.

Apollo runs on Microsoft® Windows® 10 Professional operating system. The new Premier graphic display interface is easier to use than ever before. The microfilm screen views are larger taking advantage of the 1920 x 1080 resolution available on today's big 24" screens.

The SunRise 3-in-1 scanning system consists of a Base Unit which includes: computer, software, scanner controls, camera and light source, and a Rollfilm, Fiche or Autofeeding Aperture card Module to transport the film for the type of microfilm to be scanned. Modular design lowers cost, and preserves your investment over time. We offer upgrades from older base models to Apollo.

The SunRise 3-in-1 scanning system consists of a Base Unit which includes, computer, software, scanner controls, camera and light source. A rollfilm, fiche or aperture card module completes the system for any type of microfilm to be scanned.

Apollo Features

Apollo Features

  • 3-in-1 modular design - uniform procedures all film types
  • Rollfilm, Fiche and Aperture card microfilm types
  • Highly efficient, power saving, low noise
  • Optical Zoom supporting 2,000 to 20,000 DPI

Software Features

Software Features

Windows 10 Professional Operating system Applications:

  • ScanFlo Premier
  • ScanFlo Professional (Classic)
  • ReelScan \ RowScan Strip scan
  • Remote access diagnostics

Computing System

Computing System

  • Intel i7 Processor
  • 4 Gbyte system memory
  • Internal SATA 6 Gb/s 2TB hard drive, DVD drive
  • External SATA drives, Flash drives

Input / Output

Input / Output

  • USB 2.0 / 3.0: 2-front, 2-rear / 2-rear
  • Dual displays: Analog/DVI/HDMI
  • Mouse and keyboard
  • Gigabit Ethernet LAN

Imaging

Imaging

  • Linear CCD 8160 pixel array
  • Ultra efficient LED Lamp Source
  • 48Mpixels/sec 8/12 bit per pixel mode
  • Nikon 60mm f/2.8 lens
Scanflo Professional

ScanFlo Professional is the classic SunRise user interface, familiar to SunRise customers since late 1990's.

Scanflo Professional gives the SunRise 3-in-1 microfilm scanners have a powerful feature set: Grayscale, and Bitonal scan mode, image Crop, Deskew, Adaptive thresholding, Image filters, Gamma Correction, Automatic File Naming and much more. Scanflo is highly priced by SunRise's loyal customer base.

Scanflo Professional was developed to use the features in Windows NT, and has grown with each new generation of Windows. The operator uses the main screen menu to access custom dialogs for each process step: batch scan, naming, film setup, image processing, and file processing. Some of the dialogs are customized for each film type.

The dialogs provide the means to automatically scan simple or complex films.

Features of ScanFlo Professional

Grayscale scanning 4, 8 bit and 12 bit grayscale pixels
Imaging processing Bi-tonal, fixed or adaptive thresholding, Enhance edges with filters
Page processing Divide areas in segmented frames into separate pages, mirror, rotate, invert, crop, deskew, Blip detection
Special features Blipped Rollfilm – option to skip blank pages
Fiche – apply four or more different image processing options on same fiche
Display 1280 x 1024 to 1920 x 1080 monitor size, and larger
Digitized data stream Simultaneous bi-tonal and 8-bit grayscale with different naming options
Multi-page files Create output files with all pages scanned in one file
File formats Tiff, JPEG, PDF and more
Crop & deskew Crop and save, with or without deskewing
Scan settings Parameter used to make the scan are automatically saved
Graphical User interface Two modes: Professional and Premier
Build in Help Extensive context sensitive Help available
No need to Re scan Real time image processing eliminates the need to rescan to see the changes.
Ease of use Scanflo handles the details for Image segmentation, Image clean up, Automatic Naming of output files.
Help Extensive dialog specific help displayed without search.

Blank Space

Software Datasheet

Pdf ScanFlo Professional
Scanflo Professional

ScanFlo Premier is the completely redesigned SunRise user interface, simplifying operating the SunRise Scanners.

Scanflo Premier gives the SunRise 3-in-1 microfilm scanners an even more powerful feature set: Grayscale, and Bitonal scan mode, image Crop, Deskew, Adaptive thresholding, Image filters, Gamma Correction, Automatic File Naming and much more.

Scanflo Premier was developed to use the features in Windows 10, and is well suited to be adapted to the next generation of Windows. The operator uses a single main dialog menu with tabs for each of the major scanner setup steps. batch film setup, naming, file type, camera, module setup, image processing, page processing, and batch scan. The camera and module tabs are customized for the film type.

Premier provides the means to automatically scan simple or complex films.

Features of ScanFlo Premier

Grayscale scanning 4, 8 bit and 12 bit grayscale pixels
Imaging processing Bi-tonal, fixed or adaptive thresholding, Enhance edges with filters
Page processing Divide areas in segmented frames into separate pages, mirror, rotate, invert, crop, deskew, Blip detection
Special features for each film type Blipped Rollfilm – option to skip blank pages
Fiche – apply four or more different image processing options on same fiche
Support for larger displays 1280 x 1024 to 1920 x 1080 monitor size, and larger
Digitized data stream Simultaneous bi-tonal and 8-bit grayscale with different naming options
Multi-page files Create output files with all pages scanned in one file
File formats Tiff, JPEG, PDF and more
Crop & deskew Crop and save, with or without deskewing
Initial Scan settings All Parameters used to make the scan are automatically saved
Selectable Graphical User interface Switch between Two modes: Professional and Premier
Build in Help Extensive context sensitive Help available
No need to Re scan Real time image processing eliminates the need to rescan to see the changes.
Ease of use Scanflo handles the details for Image segmentation, Image clean up, Automatic Naming of output files.
Help Extensive dialog specific help displayed without search.

Blank Space

Software Datasheet

Pdf ScanFlo Premier
Rollfilm Module

Scan Features

Wide range of film Reduction Ratios

Low reduction (7x) micro films images are large, require high film speed. High reduction (70x) micro films are very small, require low film speed.

Standard MicroFilm Sizes

  • 16mm and 35mm films are supported.
  • Capture two Newspaper pages side by side or mixes of sizes A,B,C,D

All Rollfilm Types

  • 100 ft (30m) reels
  • 200 ft (60m) reels
  • 1000 ft (300m) reels
  • Cartridges

Easily deal with film wind direction

  • Scan film wound clockwise - scan outside film surface
  • Scan film wound counter clockwise - scan inside film surface

Low Power and low noise

  • Highly efficent reel motor drive
  • Quiet operation - No Fans

Module Features

X730 Rollfilm Module Controller

  • Digital Signal Processor controlling film tension
  • Gentle slack film take up
  • Constant scan speed insured by encoder arms sensing film tension
  • Positive film control via pinch roller and capstan roller
  • Variable speed fast rewind and wind
  • Protection Circuits - Over temperature, Over current
  • Highly Efficient Driver

Optics

  • High Quality Nikon 60mm Macro lens
  • Extremely sharp focus
  • F2.8 to F32 Depth of field control
  • Even backlight all camera heights
  • Accepts Extension Tubes to lower Reduction Ratio
  • Condenser Lens accepts color filters

Apollo Rollfilm Performance

Apollo Film Speed

  • Max (2,000 DPI) 5.00 inches per second
  • Min (20,000 DPI) 0.25 ips
  • Fast forward/backward speed 5.0 ips

Fast Rewind/Wind speed

  • 100 ft reel - under 8 sec
  • 200 ft reel - under 15 sec
  • 1000 ft reel - under 2 minutes

24x A Size Simplex scan speed

Apollo HS
150 DPI 270 500 Pages per Minute
200 DPI 200 380
300 DPI 135 250
400 DPI 100 190
500 DPI 80 160
600 DPI 67 125

48x Duplex A Size Duplex scan speed

Apollo HS
200 DPI 400 760 Pages per Minute
300 DPI 270 500

Typical Reel Scan Rate

Apollo HS
100ft 24x Asize 2,000 pages 10 min 5 min
200ft 24x Asize 4,000 pages 20 min 10 min

Small size and weight

  • Size 8"x13"x24"
  • Weight 18 lbs

Microfilm Types Supported

Film polarities Negative/Positive
Reduction Ratio 7x – 72x Note: Minimum range can be lowered by use of option extension tubes
Image Orientation Rotated 90,180,270, Mirrored

Output File Format

Compression types Bi-tonal: TIFF uncompressed, TIFF CCITT G4, Multi page TIFF 1, & 2, PDF, and PDF LZW
Grayscale: TIFF uncompressed, TIFF LZW, JPEG (8-bit), GIF (8-bit), PDF, and PDF LZW
Max image height High Speed mode: 4080 pixels
High Resolution mode: 8160 pixels
Document size A0 – A4 (A – E)

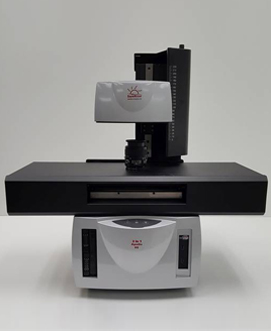

Rollfilm Module

Scan Features

Wide range of film Reduction Ratios

Low reduction (7x) micro film images are large, are scanned at high speed. High reduction (70x) micro films are very small, are scanned at low speed.

Standard MicroFilm Sizes

Standard (4"x6") fiche are supported. Scan large images (newspapers), small images, or mixes of sizes, randomly positioned, or on a grid.

All Fiche Types

  • Jacketed (strips of microfilms in pockets)
  • Computer Output Microfilm COM

Easily deal with Scan motion

Random position mode for Standard fiche, to only scan images, not blank film. Row Wise continuous scan mode for fast, smooth scan of standard or COM fiche.

Low Power and Low Noise

  • Highly efficient lead screw motor drive
  • Quite operation - No Fans

Module Features

X801/X811 Module Controllers

  • Fast thumbnail scan
  • Constant scan speed insured by high resolution shaft encoders
  • 24,000 encoder counts per inch
  • Fast random positioning
  • Protection Circuits - Over travel limiting
  • Title bar light option

Optics

  • High Quality Nikon 60mm Macro lens
  • Extremely sharp focus
  • F2.8 to F32 Depth of field control
  • Even backlight all camera heights
  • Accepts Extension Tubes to lower Reduction Ratio

Apollo Rollfilm Performance

Apollo X,Y axis platen speed

  • Max 5.00 inches per second
  • Min 0.25 inches per second
  • Fast row scan speed - 5.0 inches per second

24x A Size Simplex Row Wise Scan Speed

Apollo HS
150 DPI 270 500 Pages per Minute
200 DPI 200 380
300 DPI 135 250
400 DPI 100 190
500 DPI 80 160
600 DPI 67 125

48x Duplex A Size Duplex Row Wise Scan Speed

Apollo HS
200 DPI 400 760 Pages per Minute
300 DPI 270 500

Typical Fiche Scan Rate

Apollo HS
208 Page COM Fiche 2 min 1 min
55 Page Jacketed Fiche 2 min 1 min

Size and weight

  • Size 13"x23"x30"
  • Weight 27 lbs

Microfilm Types Supported

Film polarities Negative/Positive
Reduction Ratio 7x – 72x Note: Minimum range can be lowered by use of option extension tubes
Image Orientation Rotated 90,180,270, Mirrored

Output File Format

Compression types Bi-tonal: TIFF uncompressed, TIFF CCITT G4, Multi page TIFF 1, & 2, PDF, and PDF LZW
Grayscale: TIFF uncompressed, TIFF LZW, JPEG (8-bit), GIF (8-bit), PDF, and PDF LZW
Max image height High Speed mode: 4080 pixels
High Resolution mode: 8160 pixels
Document size A0 – A4 (A – E)

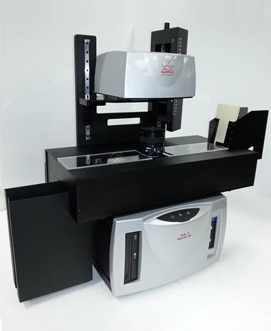

Rollfilm Module

Scan Features

Wide range of film Reduction Ratios

Low reduction (7x) micro film images are large, are scanned at high speed. High reduction (70x) micro films are very small, are scanned at low speed.

Standard MicroFilm Sizes

Standard 80 column Aperture Cards are supported. Scan large images (Engineering Drawings), or several images on a grid.

Standard Hollerith Types

  • 57 columns to left, 8 columns to right of image
  • Use Hollerith fields in naming files

Auto feed cards

Load hundreds of cards into the feeder, and the scanner runs unattended.

Low Power

  • Highly efficient lead screw motor scan drive
  • Quite operation - No Fans

Module Features

X760 Module Controller

  • Fast thumbnail scan
  • Constant scan speed insured by high resolution shaft encoders on lead screw
  • 24,000 encoder counts per inch
  • Fast random positioning
  • Protection Circuits - Card Jam detection

Optics

  • High Quality Nikon 60mm Macro lens
  • Extremely sharp focus
  • F2.8 to F32 Depth of field control
  • Film Shutter insures film is flat
  • Accepts Extension Tubes to lower Reduction Ratio

Apollo Rollfilm Performance

Apollo X Axis Scan Speed

  • Max 5.00 inches per second
  • Min 0.25 inches per second
  • Fast row scan speed - 5.0 inches per second

24x A Size Simplex Scan Speed

Apollo HS
150 DPI 270 500 Pages per Minute
200 DPI 200 380
300 DPI 135 250
400 DPI 100 190
500 DPI 80 160
600 DPI 67 125

Typical Card Scan Rate

Apollo HS
Cards per minute 10 10
Cards per hour 600 600

Size and weight

  • Size 13"x13"x24"
  • Weight 18 lbs

Microfilm Types Supported

Film polarities Negative/Positive
Reduction Ratio 7x – 72x Note: Minimum range can be lowered by use of option extension tubes
Image Orientation Rotated 90,180,270, Mirrored

Output File Format

Compression types Bi-tonal: TIFF uncompressed, TIFF CCITT G4, Multi page TIFF 1, & 2, PDF, and PDF LZW
Grayscale: TIFF uncompressed, TIFF LZW, JPEG (8-bit), GIF (8-bit), PDF, and PDF LZW
Max image height High Speed mode: 4080 pixels
High Resolution mode: 8160 pixels
Document size A0 – A4 (A – E)

Copyright © 2024 SunRise Imaging Inc. All Rights Reserved.
